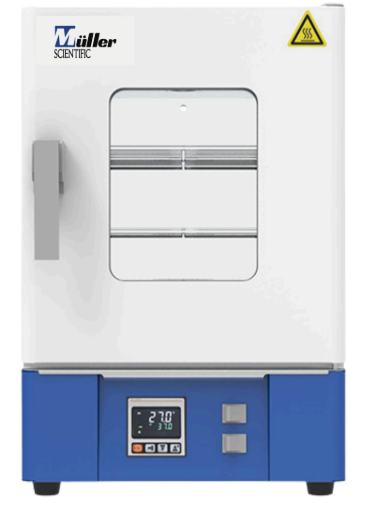

Forced Air Drying Oven BJPX-HG Series

This product is used for drying, disinfecting, melting wax and sterilizing non-flammable and non-explosive items and non-volatile items in industrial and mining colleges and universities, enterprises, scientific research, food processing, medical institutions and various laboratories. For example, drying of experimental samples, food, glassware, thermal hardening, thermal denaturation, thermal softening and water removal of chemical substances, dry heat sterilization of instruments and utensils in bioengineering, aging and drying of electronic components, etc.

Features

1. LCD display screen, with built-in temperature deviation calibration function.

2. The inner tank is made of high-quality stainless steel, with semi-circular four-corner design.

3. It has an over-temperature alarm system function to prevent damage to the instrument due to excessive temperature.

4. The unique thermal circulation circuit has a fan to form forced convection, so that the average temperature in the working room is better.

5. The perspective window structure design is convenient for observing the internal situation of the equipment.

6. Good thermal insulation performance and low surface temperature of the equipment.

Technical Parameters BJPX-HG Series

ModelBJPX-HGZ23BJPX-HGZ30LBJPX-HGZ45BJPX-HGZ54BJPX-HGZ75BJPX-HGZ88
Capacity23L30L45L54L75L88L
Temp. RangeRT+10~300℃
Temp. Resolution0.1℃
Temp. Fluctuation±1℃
Temp. Uniformity≤Max Temp.±2.5%
Circulation ModeForced convection
Timing Range1~9999min/h or continuous1~9999min/h1~9999min/h or continuous
Shelves2pcs3pcs
DisplayLCD
Standard AccessoriesShelf
Optional AccessoriesShelf, USB port, printer, RS485Shelf, casterShelf, USB port, printer, RS485
Power SupplyAC100~245V, 50/60HzAC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional)AC100~245V, 50/60Hz
Consumption645W1000W1545W
Internal Size(W*D*H)300*290*270mm310*310*310mm370*358*340mm370*340*440mm463*352*463mm500*360*490mm
External Size(W*D*H)500*540*410mm440*495*670mm600*630*520mm600*620*630mm690*630*615mm730*640*660mm
Package Size(W*D*H)650*660*580mm550*580*830mm720*710*730mm720*710*730mm830*700*800mm830*700*800mm
Net Weight35kg38kg40kg43.5kg47kg50.5kg
Gross Weight50kg50kg55kg55kg60kg63kg
ModelBJPX-HGZ138BJPX-HGZ160BJPX-HGZ225BJPX-HGZ270
Capacity138L160L225L270L
Temp. RangeRT+10℃~300℃
Temp. Resolution0.1℃
Temp. Fluctuation±1℃
Temp. Uniformity≤Max Temp.±2.5%
Circulation ModeForced convection
Timing Range1~9999min/h or continuous
Shelves3pcs
DisplayLCD
Standard AccessoriesShelf
Optional AccessoriesShelf, USB port, printer, RS485
Power SupplyAC100~245V, 50/60HzAC220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
Consumption1545W2000W3000W
Internal Size(W*D*H)555*453*555mm558*500*578mm600*520*728mm660*590*700mm
External Size(W*D*H)780*705*720mm785*777*764mm826*780*900mm900*880*890mm
Packing Size(W*D*H)870*795*850mm830*895*990mm946*850*1050mm1010*946*1050mm
Net Weight60kg68.5kg77kg86.5kg
Gross Weight77kg82kg92kg100kg
